To prevent temperature deviation caused by the long-term aging of the temperature sensor inside the aging chamber, the temperature sensor can be calibrated every 6 months or annually depending on the frequency of use.
Q-SUN xenon arc weathering testers are divided into the following three types of temperature calibrators and calibration methods based on machine models from different years:

1、First-generation calibrator, with the sensor integrated into the calibrator.

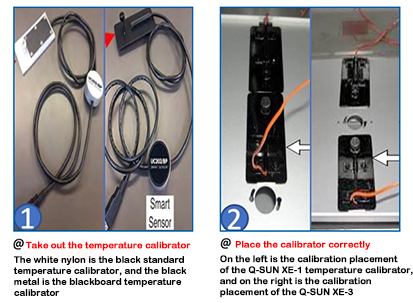

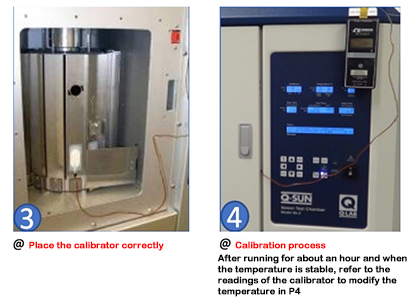

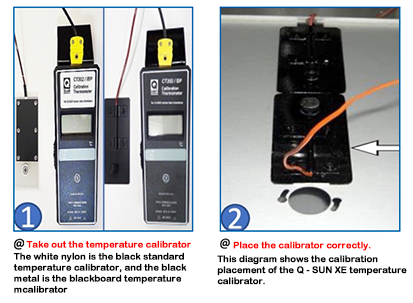

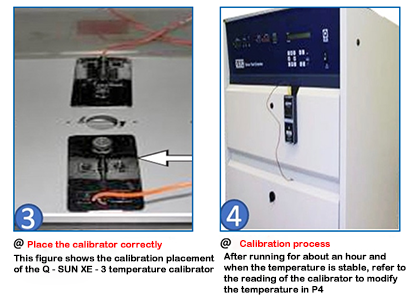

1.1、 The temperature calibration procedures for Q-SUN XE-1 and Q-SUN XE-3 are as follows:

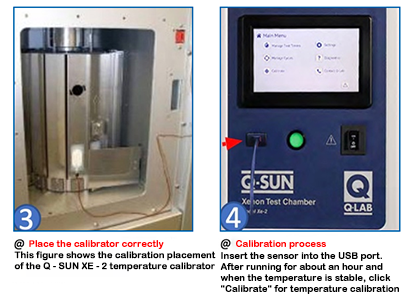

1.2、 For the first-generation calibrator, the temperature calibration method for Q-SUN XE-2 is as follows:

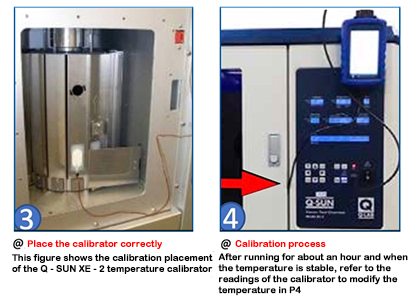

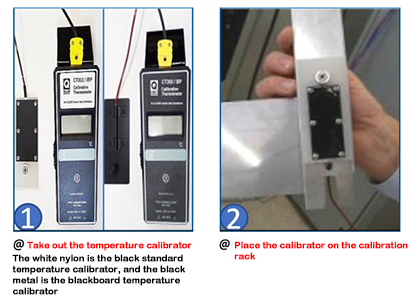

2、The second-generation calibrator is a handheld calibrator that can be connected to various sensors such as irradiance and temperature for calibration. The temperature calibration method is as follows:

3、For the third-generation calibrator, the calibrator is integrated with the machine, which can connect various sensors such as irradiance and temperature for calibration. The irradiance calibration method is as follows:

The above operations have detailed procedure descriptions and guidance in the product manual provided with the machine. For the product manual or other assistance, please contact us!
