The Q - SUN xenon lamp aging chamber is an air - cooled device. The heat dissipation of the lamp tube and the rectifier is realized by air cooling. The air filter screen is used to block dust from entering the interior of the device, so as to avoid the pollution of the internal circuit of the rectifier, the surface of the lamp tube and the optical filter. Therefore, during continuous use, the air filter screen should be cleaned once a month.

All air filter screens have the same structure but different sizes, and the cleaning methods are the same. Generally, when the equipment runs for a relatively short time, the dust on the surface of the filter screen can be cleaned with a vacuum cleaner every month. If the usage frequency is high or the dust has not been cleaned for a long time and accumulates more, it needs to be rinsed with water. In addition, please pay attention that the direction of the filter screen should not be placed incorrectly. The set direction is to make the dust only adsorb on one side, and the other side is always clean. In this way, it is more convenient to clean, and the dust is not easy to enter the interior of the device.

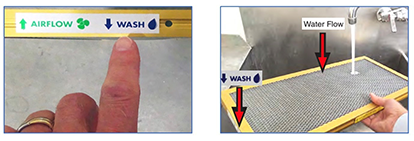

The installation direction of the filter screen and the direction of water washing are shown in the following figure:

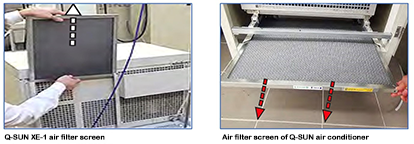

1.Air filter screens for Q-SUN XE-1 and Q-SUN air conditioners

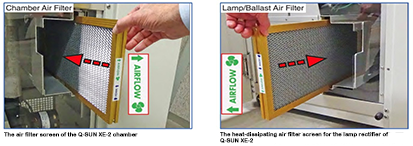

2.Air filter screen for Q - SUN XE - 2

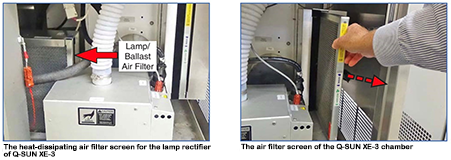

3.Air filter screen for Q-SUN XE-3 (The old model only has a cabinet air filter screen）

The above operations are described and guided in detail with step-by-step instructions in the product manual provided with the equipment. For the product manual or any other assistance, please contact us!
