ChinaAATCC201 Drying Rate Tester -Hot Plate Method

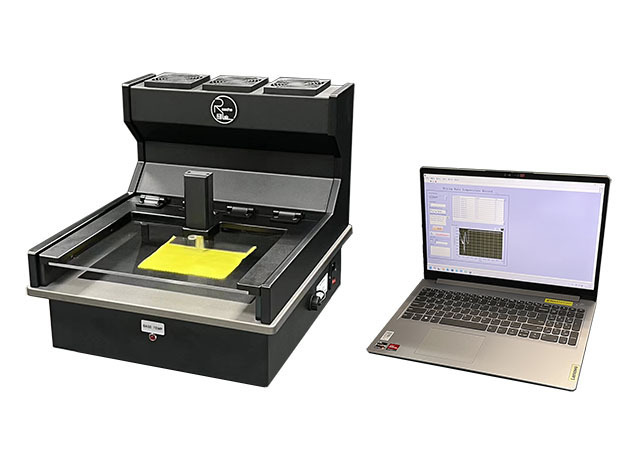

This is an automatic testing instrument designed in accordance with the requirements of the American AATCC 201 test standard for measuring the drying rate of textiles. The equipment adopts high-precision wind speed sensors, infrared temperature sensors, precision water dripping devices, high-precision wind speed control devices, and air ducts designed based on fluid dynamics. Combined with computer software, it automatically completes the testing of fabric drying time and drying rate, as well as a series of data analysis tasks, greatly improving work efficiency and measurement accuracy.
Compliance Standards
AATCC 201、FZ/T 01176, etc.
Technical Parameters
|
Parameter |
Specification |
|
Air Box |
Capable of generating 0.2-3m/sec airflow |
|
Heating Plate |
300mm×300mm ±1mm |
|
Flexible Heating Sheet |
300mm×300mm ±1mm |
|
Heat-Insulating Cork Board |
300mm×300mm ±1mm |
|
Heating Plate Temperature |
37℃ ±0.5℃ (with overheat protection) |
|
Air Velocity |
0-2.5m/s ±0.1m/s |
|
Infrared Temperature Sensor Temperature |
15-50℃ ±0.1℃ |
|
Data Transmission |
USB Data Transmission |
|
Test Interface |
Concurrent Display of Curves and Charts |
|
Test Report |
Automatic Saving, Easy to Print |
|
Power Supply |
AC 230V, 50/60Hz |
|
Overall Dimensions |
450(L)×320(W)×170(H)mm |
|
Weight |
Approximately 45kg |
