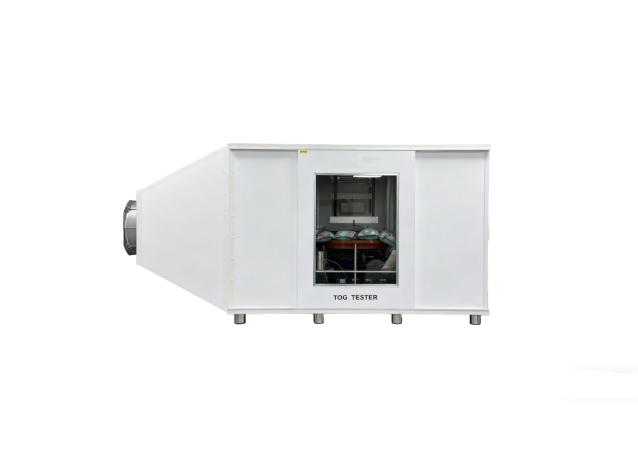

Fabric Thermal Insulation Tester

Application & Standards

The BS 4745 thermal insulation tester is capable of testing the thermal insulation performance of fabrics with a thickness ranging from 0.5 mm to 25 mm. It complies with the standards BS 4745 and ISO 5085.

The fabric thermal insulation tester requires the environment to meet the temperature and humidity conditions for general textile testing. Changes in room temperature during the test will affect the test results, so it is extremely important to keep the temperature stable during the test. If the room temperature fluctuates periodically due to thermostat operation, at least one complete cycle should be observed when testing the fabric's tog value to identify the fluctuations caused by such changes.

Technical Parameters

After calibration and under proper environmental control, the test accuracy of this precision equipment can reach 1%.

Electric furnace temperature: 33℃ ± 0.1℃; equipped with heater overheat protection.

DC-stabilized platinum resistance sensor enables absolute temperature sensing with an accuracy of 0.001 K.

Differential temperature sensing via DC-stabilized differential thermocouple.

Digital calculation and processing of thermal resistance.

Electric furnace size: 33 cm in diameter.

Instrument size: 180 cm × 53 cm × 78 cm.

Heater power: 60 W.

Airflow velocity: 0.25 - 1.0 m/s.

Power supply requirement: 100 W, 230 V.

Test time: Approximately 3 hours.

Electric furnace power is supplied by stable 12 V DC.

Capable of recording the system temperature throughout the measurement cycle for verification.

Complies with CE electrical safety regulations and EMC (Electromagnetic Compatibility).

Environmental conditions: Temperature 20±2℃, Humidity 65%±5%.
