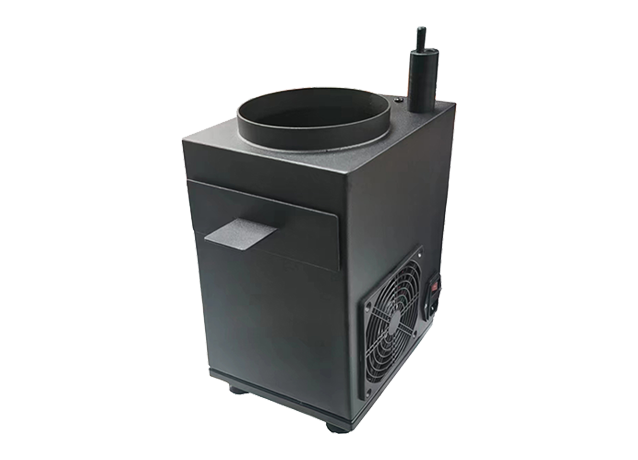

ChinaAATCC200 Drying Rate Tester - Air Flow Method
The Drying Rate Tester (Air Flow Method) simulates the drying process of sweat on fabric when the human body sweats to obtain the fabric's drying time and drying rate. The fabric is fixed at a specific position, a certain amount of water is dripped onto the fabric, and a certain air flow is generated above the fabric at the same time to simulate the air-drying effect in the actual environment. Sensors are used to test changes in relevant parameters to determine whether the fabric has finished drying, and then the fabric's drying rate is calculated based on the measured drying time.
Compliance Standards
AATCC 200, GB/T 43822, etc.
Technical Parameters
|
Parameter |
Specification |
|
Air Box Specification |
165mm×165mm×27.5mm ±1mm |
|
Air Box Opening Diameter |
130.0mm ±1mm |
|
Air Velocity |
0.2m/s-4.5m/s ±0.1m/s |
|
Infrared Temperature Sensor Temperature |
15-50℃ ±0.1℃ |
|
Data Transmission Method |
USB Data Transmission |
|
Test Interface |
Concurrent Display of Curves and Charts |
|
Test Report |
Automatic Saving, Easy to Print |
|
Power Supply |
AC 230V, 50/60Hz |
|
Overall Dimensions |
500(L)×500(W)×560(H)mm |
|
Weight |
Approximately 40kg |
