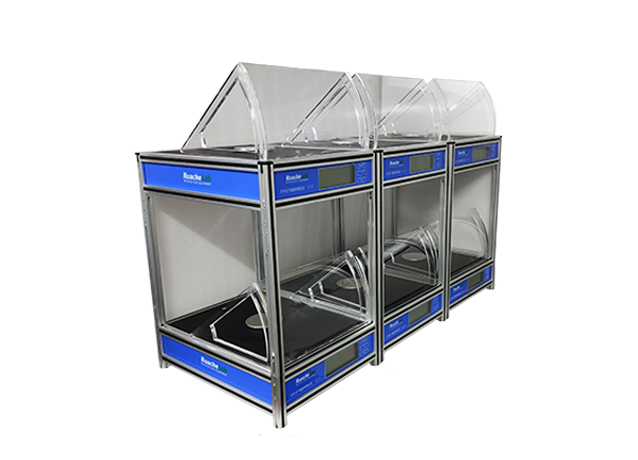

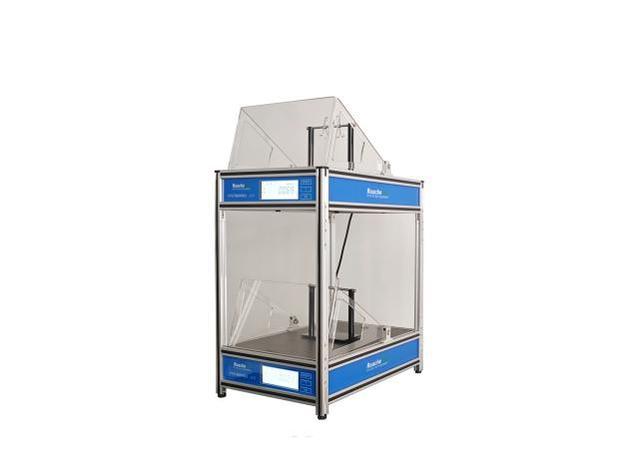

AATCC199 Drying Rate Tester - Balance Method

The Drying Rate Tester (Balance Method) is a device used to determine the drying time and drying rate (evaporation rate) of textiles after water dripping. It connects to a high-precision balance via dedicated software to monitor the weight change of the test sample with a certain amount of water dripped on it, thereby analyzing the fabric's drying time and drying rate. It is suitable for knitted fabrics or any type of quick-drying fabrics.

Combined with high-precision sensors and professional software, the drying rate testing system automatically completes the testing of relevant indicators such as drying time, drying rate, moisture evaporation rate, and residual moisture rate, and generates data curves and reports. It provides indispensable key data support for the research and development as well as quality control of textiles.

Compliance Standards

GB/T 21655.1, AATCC 199, GB/T 38016, ISO 17617, Japan BOKEN Test for Diffusible Residual Moisture Content, etc.

Product Features

● High-Precision Balance Connection: The tester connects to a high-precision balance or other standard weighing devices via dedicated software, enabling real-time monitoring of the weight change of the test sample with a specified amount of water.

● Data Transmission and Analysis: Data from the drying rate tester can be transmitted to a computer via the COM port and saved in the form of curves and charts. Test reports can be exported in Microsoft Excel format for easy analysis and printing by users.

● Wide Application Range: Suitable for various textiles such as knitted fabrics, woven fabrics, and non-woven fabrics.

● User-Friendly Design: The operation steps are simple. Before each operation, it is necessary to check the balance's level status and adjust it to a horizontal position, then turn on the computer, run the drying rate test software, and click "Connect".

Technical Parameters

Dedicated software; the number of balances is optional, and it can connect to up to 12 high-precision balances, ensuring high testing efficiency.

Interface: COM port for data transmission.

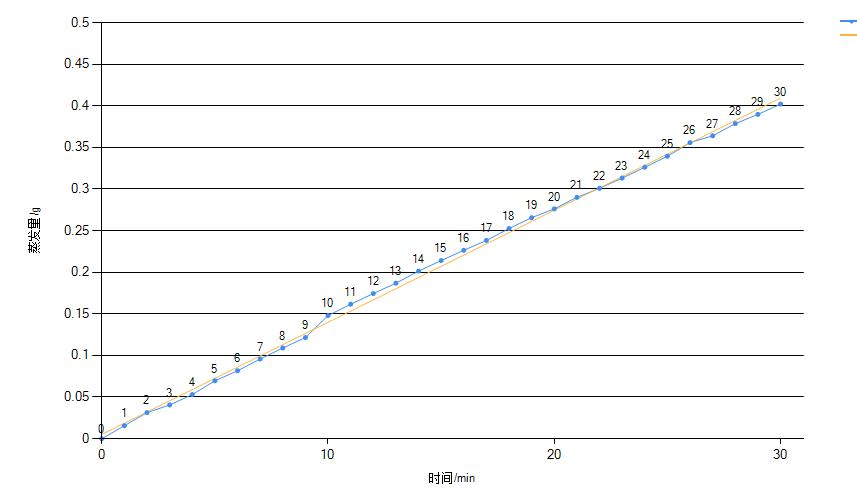

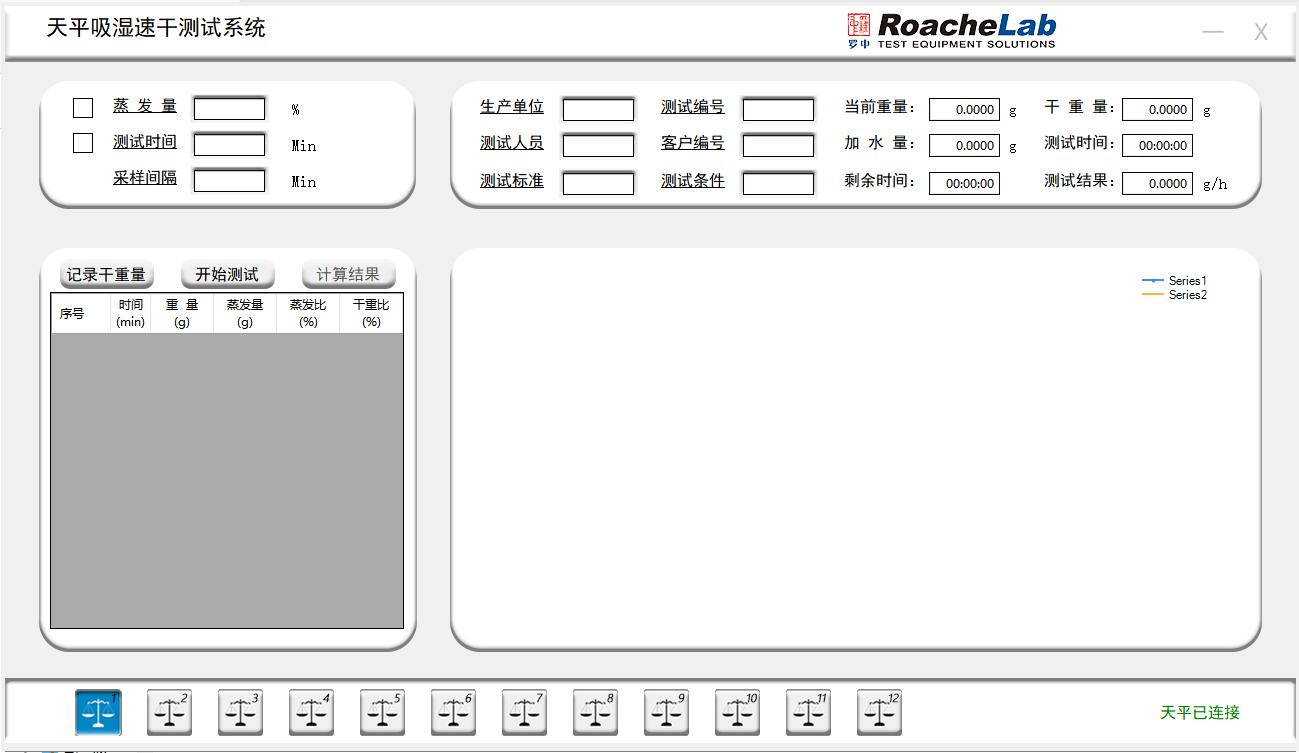

Test Interface: Displays both curves and charts.

Test Report: Microsoft Excel format.

Automatic Saving of Test Termination Conditions: Test time, drying percentage, etc.

Optional Instrument Configurations

1 set of balance kit (complying with GB national standards) and professional software

1 set of moisture meter kit (complying with AATCC standards) and professional software
