Mobile Dynamic Point Pressure Testing System

The dynamic point pressure testing system features a portable and flexible design. It can accurately measure the pressure distribution of products such as footwear, clothing, underwear, backpacks, and wrap-around wearable accessories. It objectively evaluates the pressure sensation at contact points of different products when the human body is in different movement states, helping to improve product comfort, quality, and user experience.

The Mobile Dynamic Point Pressure Testing System is suitable for testing, analyzing the pressure sensation and evaluating the fitness of clothing or complete shoes worn by real people during movement. With its portable and flexible design, it can accurately measure the pressure distribution of products such as footwear, clothing, underwear, backpacks, and wrap-around wearable accessories. It objectively evaluates the pressure sensation at contact points of different products when the human body is in different movement states, helping to improve product comfort, quality, and user experience.

 Technical Parameters

 Pressure Range: 0-100 Kpa

 Testing Accuracy: ±0.1 Kpa

 Resolution: 0.001 Kpa

 Sampling Frequency: 3-20 times/second

 Pressure Sensors: The number is optional, up to 8. Each pressure sensor performs independent measurement without mutual interference.

 Dimensions of Pressure Sensor Module: Circular (20mm or 35mm); other circular or square dimensions can be customized.

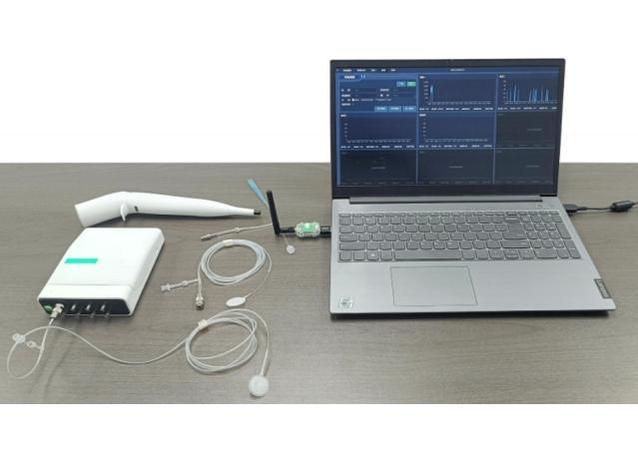

 Wireless Receiver: Portable and lightweight, easy to carry, with real-time storage function. It can import measured data into a PC for viewing via professional software and export reports.

 Transmission Distance of Wireless Receiver: Less than 300m (in a straight line without obstacles and no special electromagnetic interference).

 Battery Life of Wireless Receiver: 40 minutes

 Testing Software

 During test setup, the number of test points can be selected arbitrarily.

 The test result comparison function provides curve graphs and detailed data lists.

 The software can automatically process data results and generate the required test reports with one click.

 The software automatically processes data and finally outputs test rating results and overall evaluation results.

Intelligent Software Control

The intelligent software control enables testers to easily complete the pressure performance test of backpacks and clothing under motion conditions, improving work efficiency.

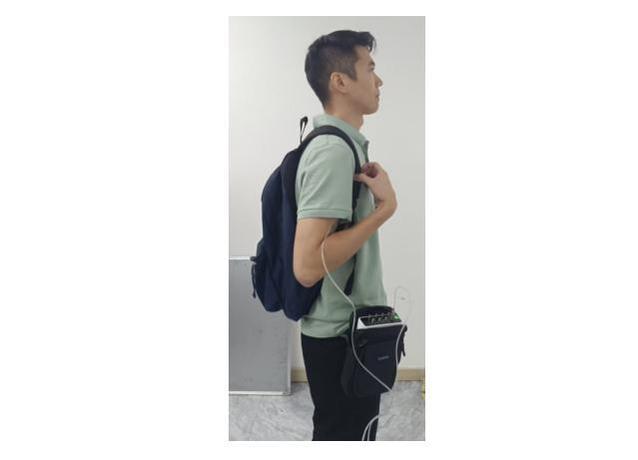

Standard Pressure Human Body Test

It is green and environmentally friendly, equipped with high-precision pressure sensors. It conducts multi-point tests on human bodies to evaluate the wearing comfort of clothing and backpacks when the human body is in motion.

Innovative Design

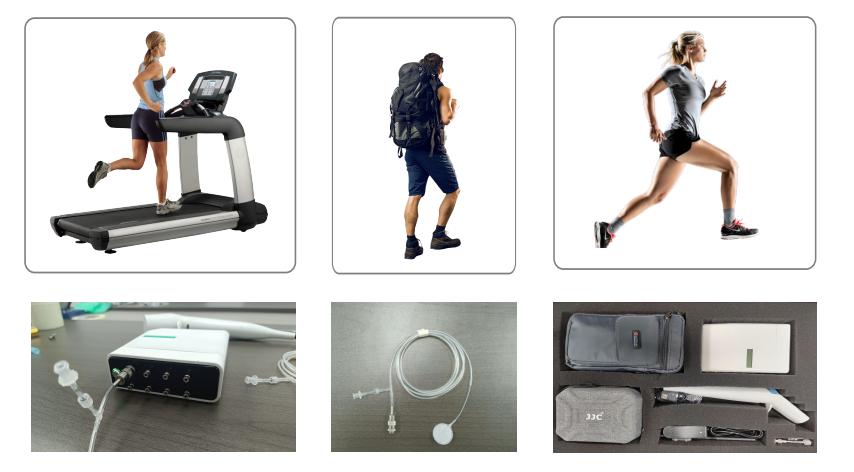

With a professionally designed mobile pressure sensor, it realizes realistic testing of human body's pressure sensation during movement. It features strong integrity and more user-friendly operation.
