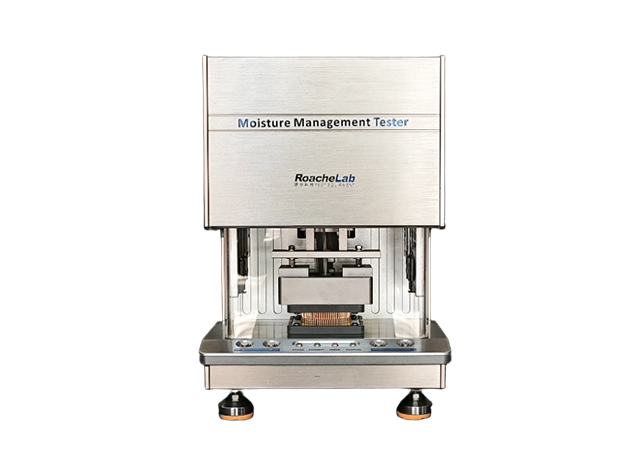

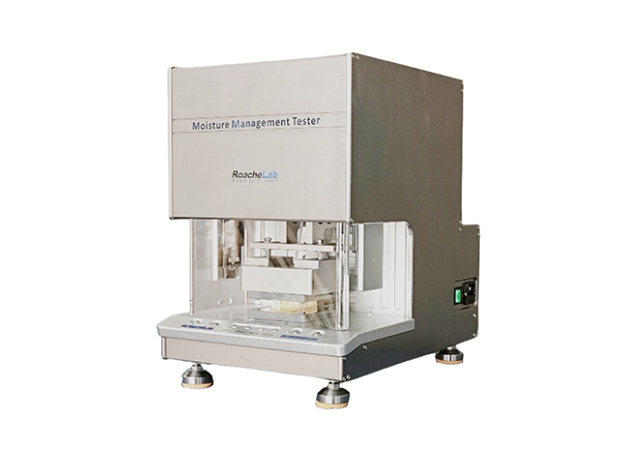

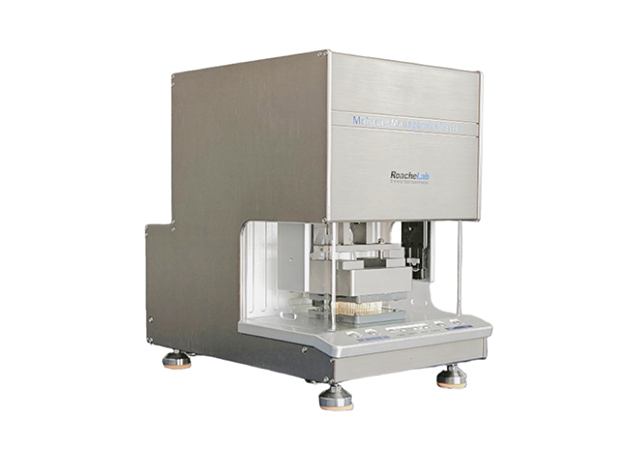

ChinaLiquid Moisture Management Tester
The Textile Liquid Moisture Transmission Tester is used for testing and evaluating the dynamic liquid water transmission performance related to the moisture absorption and quick-drying properties of textiles.It is suitable for quality control in fabric and garment manufacturing, research and development of new functional fabrics and garments, fabric classification, and fabric rating based on comfort factors related to liquid moisture management.Standards Compliance GB/T 21655.2-2009, GB/T 21655.2-2019, AATCC 195, etc.
● Adopts third-generation instrument design and manufacturing technology, improved based on feedback from over 20 professional users.
● Complies with both GB/T 21655.2 and AATCC 195 standards simultaneously.
● Features efficient cleaning design, facilitating residual liquid removal before and after each test.
● Equipped with evaluation assistance software for convenient test assessment by operators.
● Comes with automatic clamping device, enabling one-click start for quick and easy operation.
● Boasts user-friendly water injection design, making it easy for operators to add salt water and replace fresh water before and after tests.
● Includes auxiliary lighting system for clear observation of test details.
● Adopts 32-bit CPU combined with 24-bit AD acquisition system, achieving faster and more accurate data collection and processing.
● Offers optional pressure weights and collection probe specifications for both new and old standards, enabling convenient switching between standards for testing.
● Features water dripping control accuracy of ±0.003ml, with adjustable and settable dripping volume, facilitating customer research and testing.
|
Item |
Specification |
|
Sample Size |
(90±1)mm×(90±1)mm |
|
Sensor A (Complies with GB/T 21655.2-2019) |
1. Diameter of upper and lower test sensors: Φ58.5 mm 2. Ring distance: 5.0±0.05mm for inner ring, 4.5mm for others; total 7 test rings 3. Upper sensor probe: Spring probe with contact surface diameter of 1.54±0.05mm, copper-gold plated 4. Lower sensor probe: Spring probe with contact surface diameter of 1.2±0.05mm, copper-gold plated; resistance <50mΩ |
|
Sensor B (Complies with GB/T 21655.2-2009) |
1. Diameter of upper and lower test sensors: Φ58.4 mm 2. Ring distance: 5.0mm for first ring, 4.45mm for outer ring, 4.5mm for others; total 7 test rings 3. Upper sensor probe: Spring probe with contact surface diameter of 0.54±0.02mm, copper-gold plated 4. Lower sensor probe: Contact surface diameter of 1.2±0.02mm, copper-gold plated; resistance <50mΩ |
|
Test Liquid Delivery System |
Delivery time: 20S±0.1sDelivery volume: 0.22g±0.01gDelivery outlet specification: Stainless steel tube with inner diameter of 0.5mm |
|
Conductivity of Test Standard Solution |
16ms±0.2ms |
|
Test Time |
120S |
|
Test Head Pressure |
A: 9.8N±0.15NB: 4.65N±0.05N |
|
Power Supply |
AC 220V±10V, 50Hz, 160W |
|
Overall Dimensions |
510mm(L)×600mm(W)×800mm(H) |
|
Weight |
50Kg |
