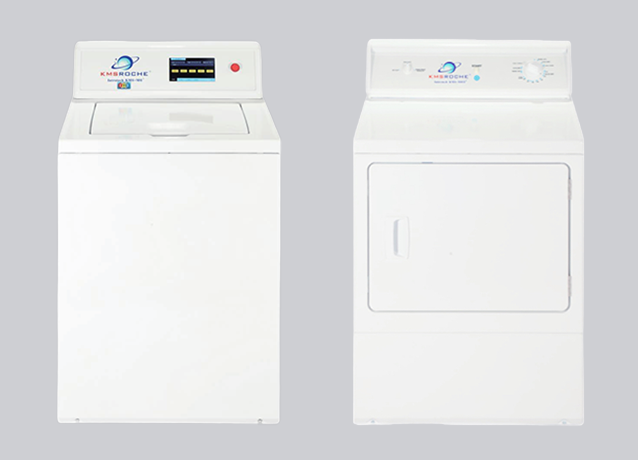

ChinaAATCC Laundering Machine&Textile Shrinkage Dryer

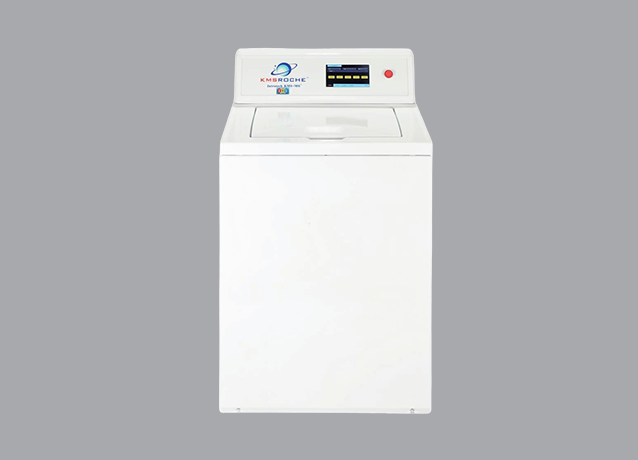

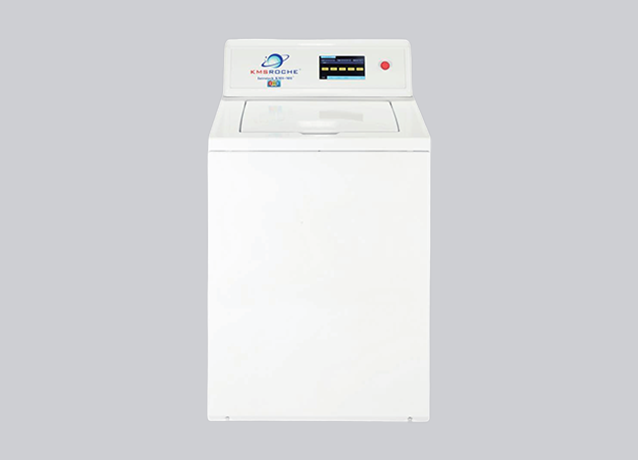

The KMS-M6 is a testing machine specifically designed to meet the shrinkage rate of laborator textiles, drawing on many years of experience. It complies with the latest AATCC standards ( Table I, IIC, IID, IIIA, IIIB ) and the standard requirements of the AATCC-developed M6 Monographs. The KMS-M6 has been officially recognized and recommended by the AATCC.
Standards: AATCC TM88B, TM88C, 124, 135, 143, 150, LP1
Machine Features:
• Equipped with an industrial-grade touchscreen controller, offering multi-language selection (Chinese and English)to meet diverse needs.
• Capable of displaying and controlling the water temperature inside the drum, utilizing cold and hot water for proportional adjustment.
• Features powerful customization capabilities, allowing settings for water temperature, water volume, stirring speed, washing time and other projects to be adjusted as required.
• Manual mode enables individual operation of adding cold water, adding hot water, washing, draining, and spinning.
• Calibration function for water temperature, water volume, stirring speed and spin speed.
• Door lock can be set to effective or ineffective, reflecting a user-friendly design.
• Blinking signal light to alert the operator to pay attention or indicate the end of a test.
• Fault alarm function for convenient troubleshooting.
.jpg)
Machine Parameter:
• Washing capacity: 10.5KG
• Voltage: 220V/50Hz
• Power: 1.5KW
• Machine dimensions(W××D): 651×711x1092mm
• Weight: 90KG

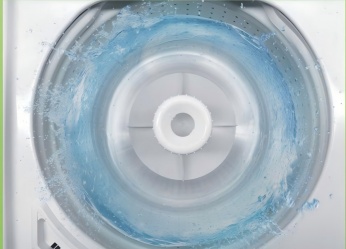

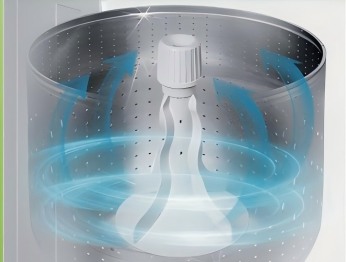

A robust drive system in combi- nation with
mechanical rotation ensures garments
receive a thor- ough wash, while the smooth
tainless steel washing drum pro- tects the clothes.
Standard Washing Programs:
• Normal
• Permanent press
• Delicate
• Cstom
• Drain&Spin
|
Washing Program Parameters |
|||
|
Cycle |
Normal (Tablel) |
Permanent Press (Tablel) |
Delicate (Tablel) |
|
Water Level Medium |
19± 1gal |
19± 1gal |
19± 1gal |
|
Agitation Speed |
86±2spm |
86±2spm |
27±2spm |
|
Washina Time |
16± 1min |
12± 1min |
8.5 ± 1min |
|
Final Spin Speed |
660± 15rpm |
500± 15rpm |
500± 15rpm |
|
Final Spin Time |
5 ± 1min |
5 ± 1min |
5 ± 1min |

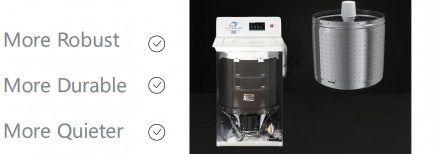

Robust Machine Design:
• Ceramic-coated steel outer drum.
• Stainless steel washing inner drum.
• High-power servo variable speed motor, offering good stability and strong durability.

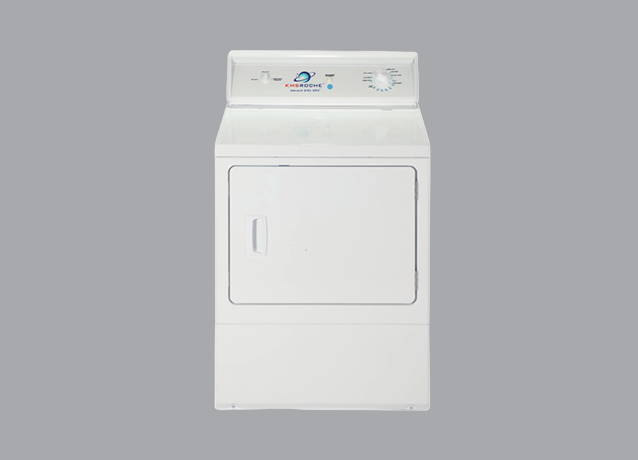

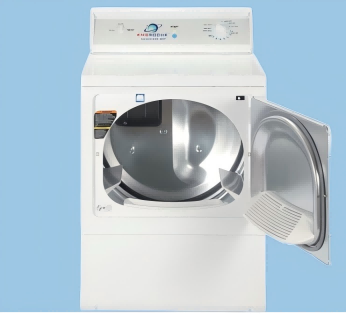

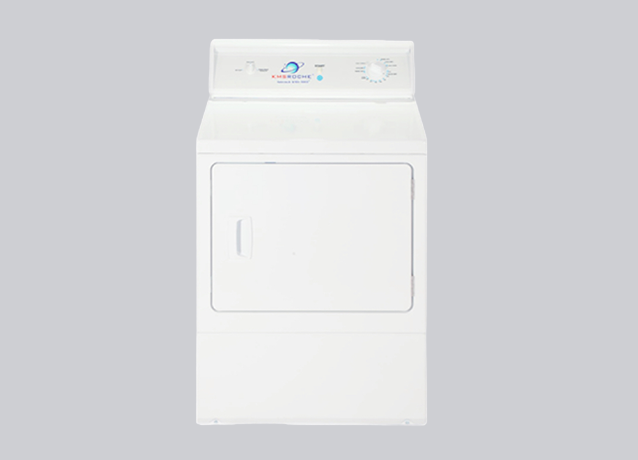

This dryer is engineered to meet industrial-grade standards, aligning with the parameters and requirements for AATCC home laundering test methods 88B, 88C, 124, 130, 135, 142,143,150,172, 179 and 188 as outlined in the AATCC M6 Monograph, as well as adhering to the standards established by LPI.
Machine Features:
• Features an industrial-grade touchscreen PLC controller, offering high-temperature resistance and waterproof for enhanced durability.
• Equipped with a large display screen that shows the current operating time and temperature for easy and intuitive use.
• The body is constructed from stainless steel metal, manufactured through a single-piece stamping process and treated with a high-temperature bakingpaint for increased strength and durability.
• Includes a quiet and efficient blower system,utilizing an airflow of 220 cubicfeet per minute to expedite drying and reduce operational costs.
• Features an American-style large capacity drum of 10.5KG.
.png)
Machine Parameter:
• Voltage: 220V 50HZ
• Power: 4800W
• Net weight: 68kg
• Package dimensions: 750x775x1143mm
• Machine dimensions: 683x711x1092mm
