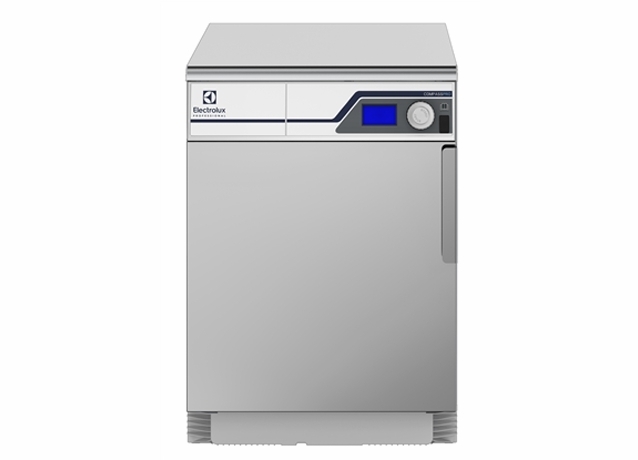

TD6–6LAB Tumble dryer

Priority on people

Certified ergonomic design with a human-centered approach for an outstanding user

experience

● Reversible door hanging for a convenient laundry flow

Easy access to vital parts from the top and rear for simple servicing

● Stainless steel drum

● Stainless steel front

Long-term savings

Innovative features to save money and time, and embrace a sustainable lifestyle

● Residual Moisture Control for an accurate drying result and a low energy consumption

Pure control

Monitor your equipment and performance from anywhere, allowing to take action and to

improve your business with OnE Laundry - the personal assistant for hygiene validation

management, process management and revenue management (optional)

Outstanding productivity

● Reversing drum minimizes wrinkles and drying time to get an effective and even drying

performance

Special features

Dedicated drying programs for ISO6330 standard + additional programs for normal drying

Other options

● Stainless steel base frame

● Stacking frame for mounting TD6-6 on top of WH6-6

Product Features

● Professional dryer which meets ISO6330 standard

● Durable mechanical construction, designed for professional use

● Dedicated drying programs for standard + additional programs for normal bulk drying

● Stainless steel front and drum

● Accurate control of exhaust air temperature

● High heating power meaning quick drying

● Combine with FOM71CLS reference washer for a complete testing solution

● Compass Pro® microprocessor offers

● Large display and one control knob for easy program selection

● Language selection

● Quick selection start and option buttons for frequently used programs

● Drying program packages optimized for Economy, Care and Time

● Service program for adjustment of parameters

● USB connection

● Residual Moisture Control (RM) for an accurate drying result and low energy consumption

● Reversing drum for less tangling of large items

● Reversable door hanging for a convenient laundry flow

● Easy access to vital parts from the top and rear for simple servicing

● Main specifications TD6–6LAB

● Rated capacity, filling factor 1:22 kg / lb 6 / 13

● Drum, volume litre 130

● Drum, diameter ø mm 575

● Heating alternatives:

● El kW 2.9 / 3.2

● Consumption data1

● Total time Min 54

● Energy consumption, full load kWh 2.95

● Evaporation g/min 56

● Energy water evaporation kWh/l 0.98
