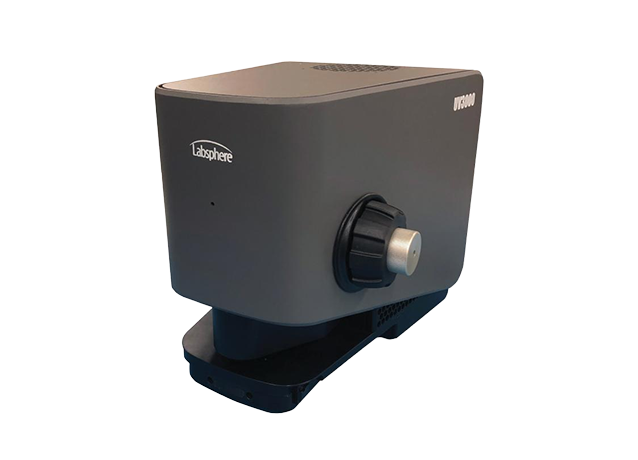

UV3000F Ultraviolet Fabric UPF Test Instrument

Achieve instantaneous UPF protectionfactor values of fabric/textile samples

Labsphere’s UV3000F incorporates the latest component and software technology into an industry proven system architecture, to achieve accurate UPF, critical wavelength and UVA:UVB ratio of fabric samples. Driven by rapidly evolving industry requirements to simplify research and development or quality control for fabric samples, the UV3000F is designed to comply with recently approved testing methods.

Fast

The UV3000F rapidly measures the difuse transmittance of textile samples in the ultraviolet wavelength region from 280 - 500 nm. Labsphere’s Spectralon® integrating sphere incorporates a re-optimized xenon flash lamp to provide exceptional diffuse illumination of the product sample and minimize data integration time. Our new high-performance diode array spectrometers coupled by advanced fiber optics are optimized at the system level for low stray light with su-perior wavelength stability and flash-to-flash repeatability.

Value

Stay current with automatic calculations of UPF parameters per:

● AATCC TM183 (2020)

● AS/NZS 4399:2017

● AS 4399:2020

● EN 13758-1:2002+A1:2007

● EN 13758-1:2001+A1:2006

● GB/T18830:2009

● JIS L 1925:2019
and user defined methods

Benefits

● Simplifying ultraviolet protection factor testing with speed and versatility

● NEWRobust industrial design built to last

● Save time and money with Labsphere’s flash technology for rapid testing

● NEW Low learning curve menu-driven software for sample testing and reporting to industry standards plus new configurable interface and reporting features

● NEW Know more with extended test capabilities over the UV-VIS range from 280 nm to 500 nm

● NEWSave time and trust results with our calibration validation kit with our linear filter holder that improves calibration validation efficiencies by more than 75%

● Achieve repeatable sample placement with the manually operated sample stage positioning for pre and post-irradiation

Easy to operate
The menu driven software guides the user through industry test methods. The built-in report functions generate essential information analysis and industry standard reporting formats. Reports includenecessary information such as date, time, operator name, sample identification, and test parameters. Reports are conveniently viewed on your PC, printed, or can be exported to data processing software for further review and analysis.

Powerful application software

Developed with .NET Framework® , this easy to use Windows® 11 compatible software

Capture, Archive and Retrieval and export of all data including bare substrate data that may impact UVA-PF due to surface roughness.

Integrated Performance Validation Routine that allows for on-site validation and re-validation to ensureoptimum instrument performance.
