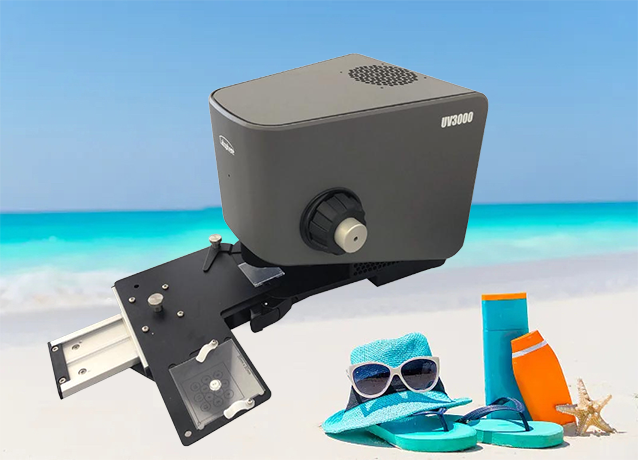

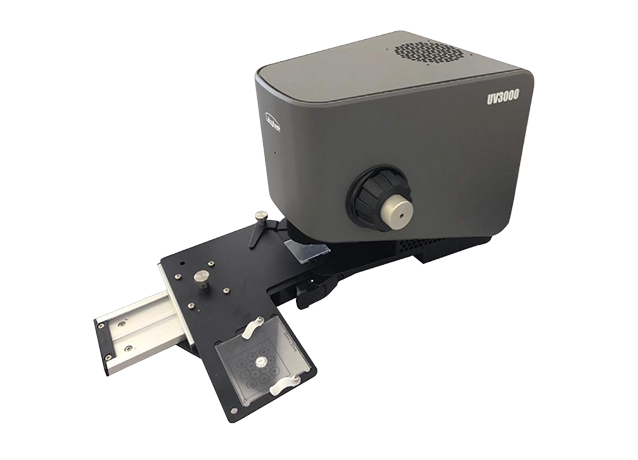

UV3000S Ultraviolet Cosmetics SPF Test Instrument

Simplifying Sun Protection Validation with Speed and Versatility

Labsphere’s UV3000S incorporates the latest technologies and software enhancements to achieve accurate in vitro SPF Sun Protection Factor analysis of cosmetics and sun care products to qualify and receive the “very high, 50 or higher SPF” sun protection label, and HEVIS sun protection testing. Driven by industry requirements to simplify product labeling and improved in vitro methods to validate product UV Protection, the UV3000S is designed to comply with approved in vitro methods and in vivo spectrophotometer methods.

Fast

The UV3000S flash technology saves time and money when bringing new products to market. The UV3000 rapidly measures the diffuse transmittance of sunscreen samples in the ultraviolet wavelength region from 290 nm - 450 nm and High Energy Visible (HEV) blue light from 400 nm to 500 nm.Labsphere’s Spectralon® integrating sphere incorporates a re-optimized xenon flash lamp to provide exceptional diffuse illumination of the product sample and minimize data integration time. Our new high-performance diode array spectrometers coupled by advanced fiber optics are optimized at the system level for low stray light with superior wavelength stability and flash-to-flash repeatability.

Value

Stay current with the latest global cosmetic testing and reporting of SPF, UVA, UVB, UVR, and more:

● ISO23675

● ISO 23698

● ISO24443

● FDA 2012

● COLIPA

● Boots Star Rating

Benefits

● NEWrobust industrial design built to last

● Save time and money with Labsphere’s flash technology for rapid testing

● NEW Low learning curve menu-driven software for sample testing and reporting to industry standards plus new configurable interface and reporting features

● NEW Know more with extended test capabilities over the UV-VIS range from 290 nm to 500 nm for testing UV SPF and Hyperpigmentation HEVIS

● NEWSave time and trust results with our calibration validation kit with our linear filter holder that improves calibration validation efficiencies by more than 75%

● Achieve repeatable sample placement with the manually operated sample stage positioning for pre and post-irradiation

● NEWBe more efficient with our optional Automated Sample Stage

● Versatile testing options with 50 mm,75 mm and ISO 9 point sample test templates for repeatable testing and reporting

Easy to operate

The menu driven software guides the user through industry test methods. The built-in report functions generate essential information analysis and industry standard reporting formats. Reports include necessary information such as date, time, operator name, sample identification,and test parameters. Reports are conveniently viewed on your PC, printed, or can be exported to data processing software for further review and analysis.

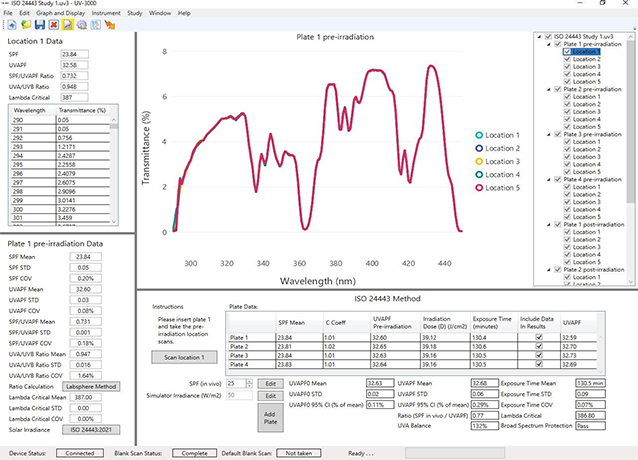

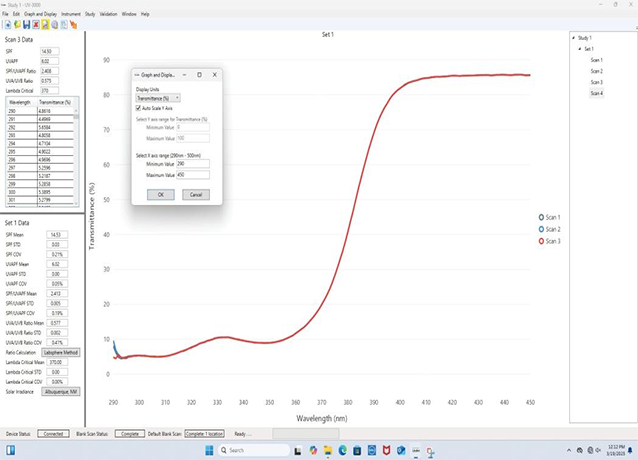

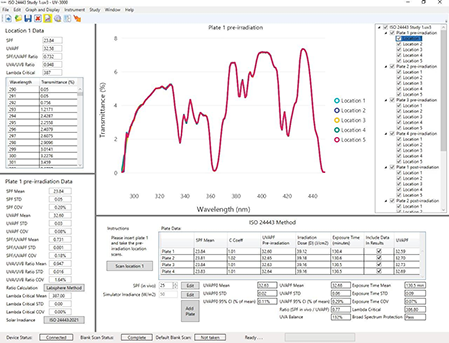

Powerful application software

● Developed with .NET Framework® , this easy to use Windows® 11 compatible software

● Capture, Archive and Retrieval and export of all data including bare substrate data that may impact UVA-PF due to surface roughness.

● Integrated Performance Validation Routine that allows for on-site validation and re-validation to ensure optimum instrument performance.
