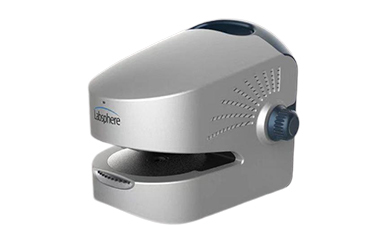

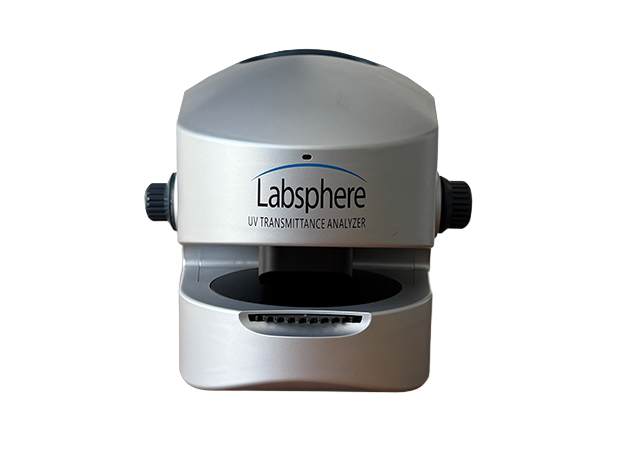

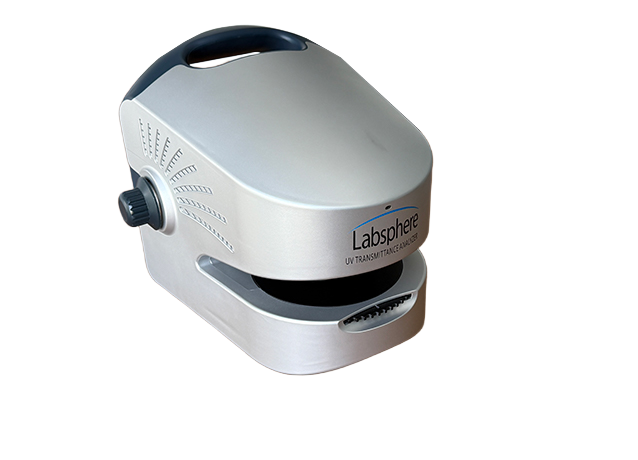

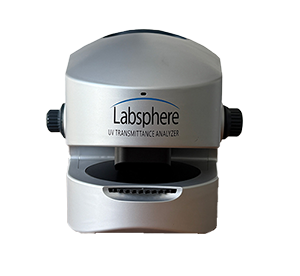

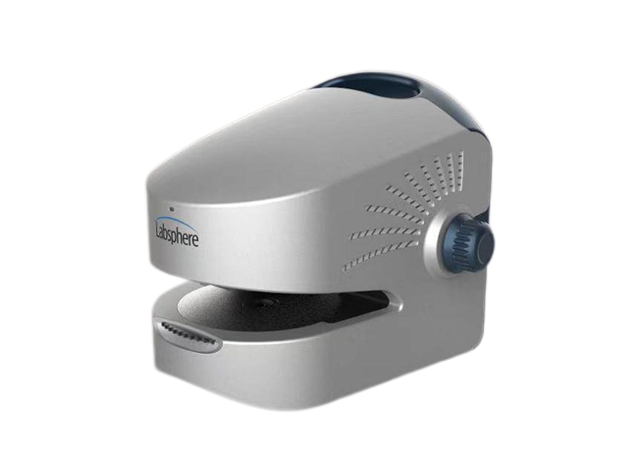

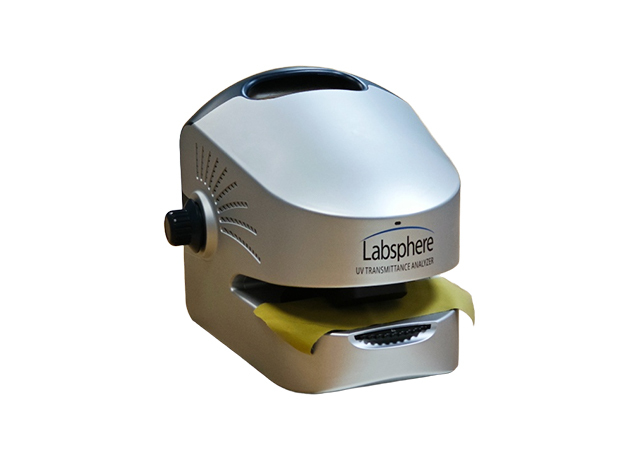

UV-1800F Ultraviolet Transmittance Analyzer

Fast

The UV-1800F rapidly measures the diffuse transmittance of textilesamples in the ultraviolet wavelengthregion from 250 - 450 nm. Labsphere’s Spectralon integrating sphere incorporates areoptimized xenon flash lamp to provide exceptional diffuse illumination of the product sample and minimize data integration time. New high performance diode array spectrometers coupled by new advanced fiber optics are optimized at the system level for low stray light with superior wavelength stability and flash-to-flash repeatability.

Value

One-touch sample analysis; sample scanswithin five seconds

Automatic calculations of spectraltransmittance, UPF, critical wavelengthand UVA:UVB ratios

Performance validation routine

Automatic calculations of UPF parameters per AATCC 183:2020, AS/NZS 4399:1996, AS/NZS4399:2017, AS 4399:2020, EN 13758-1:2007 (EN 13758-1:2001+A1:2006),GB/T18830:2009, Japan Garment Association Standard, JIS L 1925:2019, and user defined methods

Features

Compact manual rotating sample stage

Wavelength accuracy to +/- 1 nm

Measurement area 1.26 cm²

Dynamic range extension up to 2.2 AU

Auto flash capability

USB 2.0 computer interface

UVA:UVB ratio

Powerful Application Software

Developed with .NET Framework, the UV-1800F software can use different measurement methods for UPF of textile samples, including AS/NZ 4399:1996, EN13758-1:2007, AATCC TM183:2020, GB/T18830, and user-defined methods.Compatible with Windows7 and Windows10 operating systems, the software is simple and easy to use, and can achieve the acquisition, archiving, retrieval, and output of various data for different types of textiles. The UV-1800F application software includes an integrated Performance Validation Routine that allows for on-site validation and re-validation to ensure optimum instrument performance.
