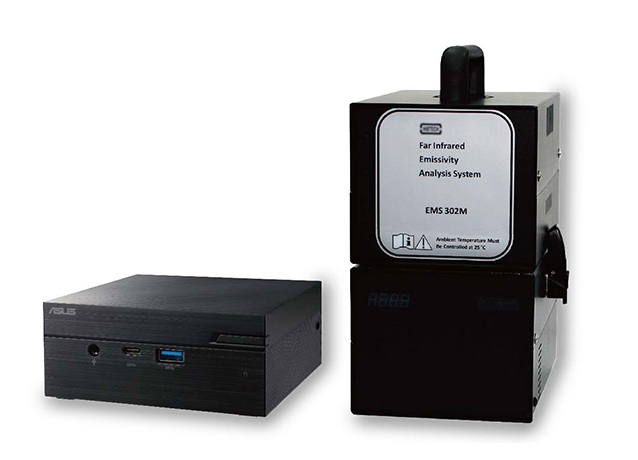

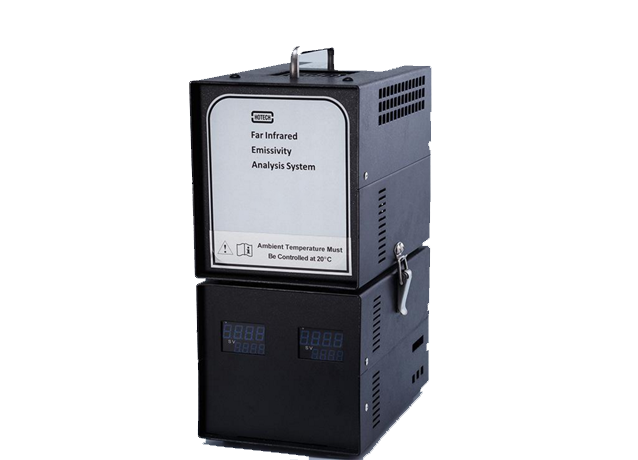

ChinaFar-Infrared Emissivity Tester
The Far-Infrared Emissivity Tester is a measuring instrument designed for objects with far-infrared functions, mainly used to measure the emissivity of object materials. In recent years, with the advancement of far-infrared technology, it has been discovered that far-infrared materials possess the characteristic of high emissivity. When materials with far-infrared properties are close to, worn or worn on the human body, they can promote blood circulation and achieve thermal insulation function. In the cold environment of winter, far-infrared functional products such as clothing, quilts, and knee pads are in great demand in the market; however, most of the far-infrared emissivity testing devices available on the market measure emissivity under high-temperature conditions. In fact, the human body surface temperature is about 34℃, which is too close to the ambient temperature, making detection difficult and causing large errors. Therefore, most data are measured under the condition of 80℃ or even higher 120℃, which is simple to measure but inconsistent with the actual situation. As a result, the measured infrared emissivity may be very high, but it does not conform to the actual situation of use at human body temperature.
The infrared emissivity measuring device under the low-temperature condition of 34℃ — Far-Infrared Emissivity Tester can accurately measure the infrared emissivity of objects. The far-infrared emissivity tested under the condition of 34℃, which is consistent with the human body surface temperature, is objective, fair and reliable. When purchasing far-infrared materials in the market, it can provide a basis for correctly selecting materials with high emissivity at 34℃ to manufacture products with normal infrared emissivity efficiency.
● Compliance Standards: It is the designated professional instrument for the national standard of detection and evaluation of far-infrared properties of textiles GB/T 30127-2013; it complies with the health functional textile standard CAS115-200.
● This tester focuses on measuring the emissivity of various object materials that are close to the human body temperature.
● It is easy to operate: after turning on the machine, place the sample on the test bench, and after the temperature stabilizes, press the measurement button, and the result will be displayed on the digital LCD screen.

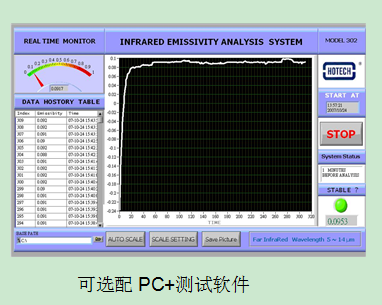

● Far-Infrared Emissivity Tester Graphic Display: Through computer programs, the change and stability of infrared emissivity values can be displayed on the computer screen, allowing operators to clearly understand the changes in emissivity of the measured sample more easily. The consistent automatic logic judgment avoids the misjudgment of emissivity.
Product Features
● Measurement of far-infrared emissivity of bamboo charcoal / binchotan charcoal.
● Comparison of emissivity of various textile fiber materials before and after processing/treatment.
● Measurement of emissivity of various filter materials during R&D and finished products.
● Correction of emissivity for objects measured by infrared thermometers.
● An essential and optimal equipment for the development of other far-infrared related products.
|
Parameter |
Specification |
|
Wavelength Measurement Range |
5～14μm |
|
Emissivity Measurement Range |
0.01～1.00 |
|
Emissivity Accuracy |
±0.01 |
|
Warm-up Time After Startup |
15 minutes |
|
Detection Time |
3 seconds (Response Time: 500ms) |
|
Detector Temperature |
34℃ |
|
Temperature Control Accuracy |
±0.015℃ |
|
Ambient Temperature |
20℃±1℃ |
|
Measurement Tabletop |
Φ60mm |
|
Power Supply |
AC 110V, 220V |
|
Dimensions |
184(W)×150(D)×187mm(H) |
|
Weight |
Approximately 3200g |
