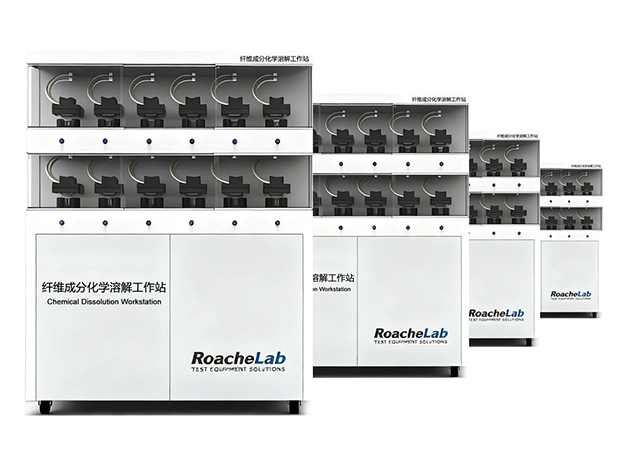

Chemical Dissolution Workstation

The Fully Automatic Chemical Dissolution System for Fiber Composition Quantitative Analysis is an intelligent laboratory equipment designed to analyze and determine the fiber component content in blended and other composite materials, complying with various domestic and international testing standards. Featuring high automation, the system integrates functions such as liquid feeding, heating, stirring, filtration, and cleaning. It can independently complete experiments without human intervention while preventing operators from frequent contact with chemical reagents.

Product Features

● Liquid Storage UnitEquipped with upper-positioned storage tanks for chemical reagents and neutralizing solutions, it enables precise measurement of experimental dosage and automatic replenishment.

● Liquid Dosing UnitAccording to the process program, quantitative chemical solutions are delivered to dissolution flasks through corrosion-resistant independent pipelines, ensuring a fully closed-loop and pollution-free process.

● Dissolution UnitAdopting a patented stirring and dissolution method, each dissolution unit allows independent process control.

● Neutralization and Cleaning UnitRealizes automatic reagent neutralization and spray rinsing after chemical dissolution, ensuring no sample contamination.

● Suction Filtration UnitUtilizes glass sand core suction for automatic filtration and liquid discharge. Acidic reagents, alkaline reagents, organic solvents, and water are discharged separately, facilitating waste liquid recovery and treatment.

● Control UnitEach dissolution unit can be controlled individually or uniformly. It supports simultaneous dissolution of the same sample or separate dissolution of different samples.

Compliance Standards

GB/T 2910, ISO 1833, AATCC 20A, JIS L1030, FZ/T 01057.4, FZ/T 01026-2017, FZ/T 01131-2016, FZ/T 01132-2016, FZ/T 01134, FZ/T 01135, FZ/T 01095-2002, FZ/T 01103, FZ/T 01112
