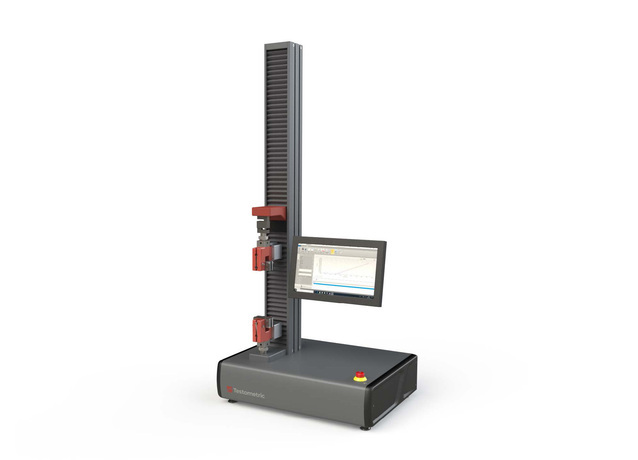

X250 SINGLE COLUMN UNIVERSAL TESTING MACHINE

Testometric is a comprehensive materials testing machine and software company based in the UK. They specialize in the design and manufacturing of a wide range of material testing equipment and performance testing software. Testometric's universal testing machine solutions are widely used in material testing, finished product testing, quality control, and research and development.The Testometric Single Column Universal Testing Machine, model X250, is capable of performing mechanical tests such as tension, compression, bending, peeling, tearing, shearing, friction, and other types of tests, in accordance with ASTM, ISO, and other industry standards.

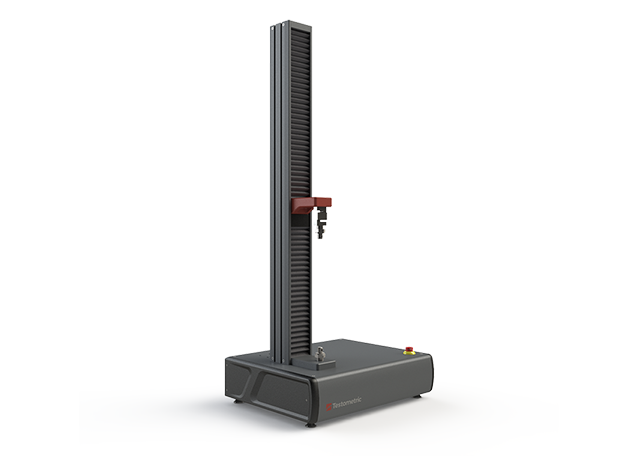

Single column, bench-mounted Universal Testing Machine with full computer control and precision AC servo drive system. High speed operation for efficient material testing up to 3kN capacity.

Machine Software

All machines are supplied with our comprehensive WinTest-Analysis EC software package, allowing full PC control and the ability to create and store complex test routines.

Made to Measure

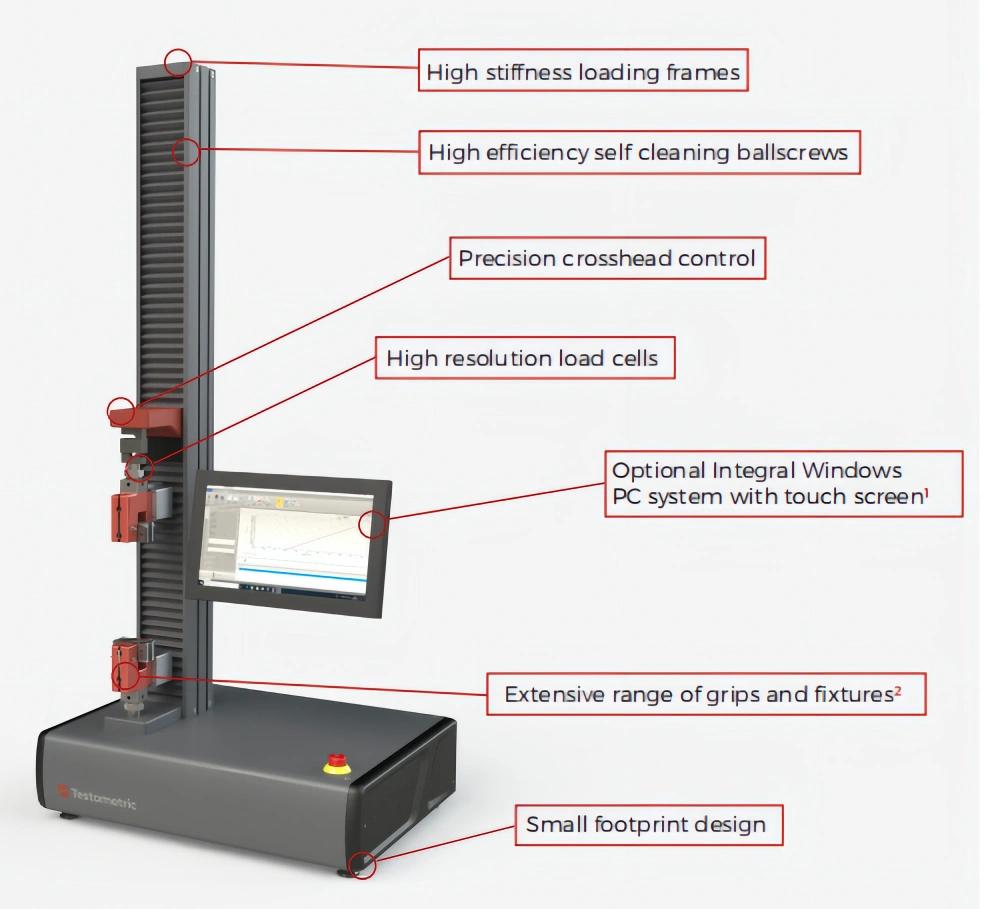

※ Testometric Testing Machines Ruler DividerFully digital testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.

※ High resolution load cells with accuracies better than +/-0.5% down to 1/1000th of the load cell capacity.

※ Automatic recognition of load cells and extensometers, with on-device storage of calibration parameters.

※ Software calibration check facility for instant verification of machine accuracy.

※ 800% overload capability of load cells without damage.

※ High efficiency pre-loaded self cleaning ballscrews for fast, quiet testing. Fitted with sealed for life lubricated end bearings.

※ Crosshead guidance system providing precise alignment and smooth running.

※ Precision crosshead control via digital AC servo drive and brushless servo motor giving maintenance free operation and 23-Bit positional control.

※ High speed data collection systems for up to 4 synchronous channels.

※ Integral load cell cable routing in machine column to eliminate snagging and prevent cable damage.

※ 6 I/O channels for additional devices such as extensometers, micrometers, calipers, balances etc.

※ High stiffness loading frames with solid specialised steel crossheads and rigid extruded support columns with T-slots for accessory mounting.

※ Overload, overtravel and impact protection.

※ Telescopic covers giving additional protection for ballscrews against dust and testing debris.

※ Small footprint design, giving economy of bench and floor space.

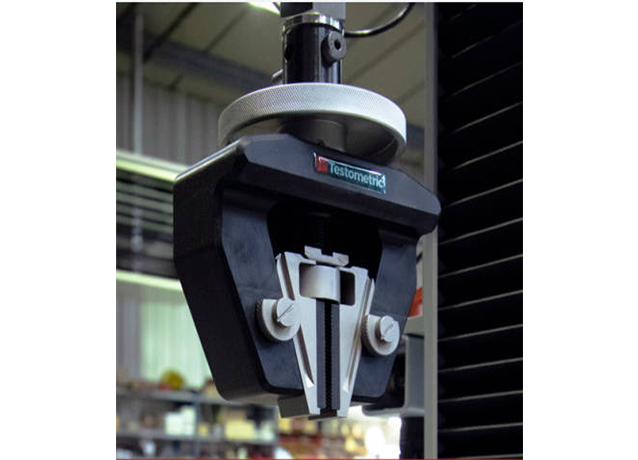

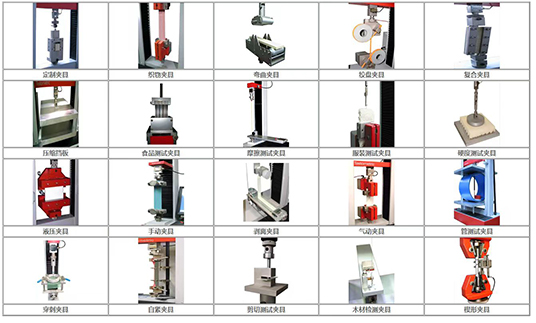

※ Extensive range of grips and fixtures for tension, compression, flexural, shear, peel and product testing etc.

※ A wide range of contacting and noncontacting extensometers is available including laser and video models.

Force Measurement

Universally Calibrated, better than Grade 0.5 EN 7500-1, DIN 51221 ASTM E-4. AFNOR A03-501. Range 0.4% to 100% minimum. Automatic identification of load cell. Resolution 1 part in 500000. Electronic load cell protection.

Extension Measurement

Full frame length to a maximum resolution of 0.000001mm (selectable). Accuracy +/- 0.01mm. Absolute, relative and auxiliary modes in mm, inch and percent.

Speed Control

Class-leading low speed performance with speeds down to 0.00001mm/min. Drive system temperature and current protection.

Load Frame

Rigid frame, using precision linear guidance system and rigid extruded support column. Frame stiffness 8kN/mm plus K factor facility built-in. Re-circulating ball screw with bellows. Electronic limit trips, total travel trips and customer programmable safety stops.

Electronics System

Modular electronics system offers fast data transfer to the PC (up to 1000Hz) via high-speed Ethernet connection. Extensive input options allow the connection of a wide range of extensometers and accessories via simple plug-in interface modules.

Safety Features

Extensive safety features to ensure highest levels of operator safety, including E-Stop, programmable extension limits and overload/impact detection. Fully compliant with global safety directives:- 2006/42/EU Machinery Directive, 2014/35/EU Low Voltage Directive and 2014/30/EU Electromagnetic Compatibility Directive.

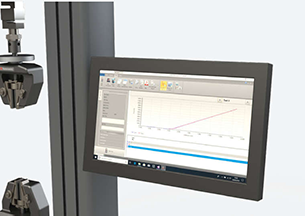

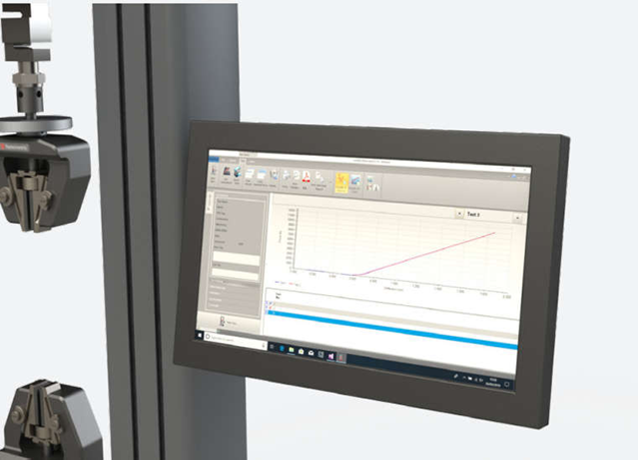

Optional Touchscreen Panel PC

When paired with the optional IPC3 industrial-grade Panel PC with touchscreen control, the machine becomes a robust standalone system without the need for an external PC or Laptop.
